Video 5 MF-NET IP

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

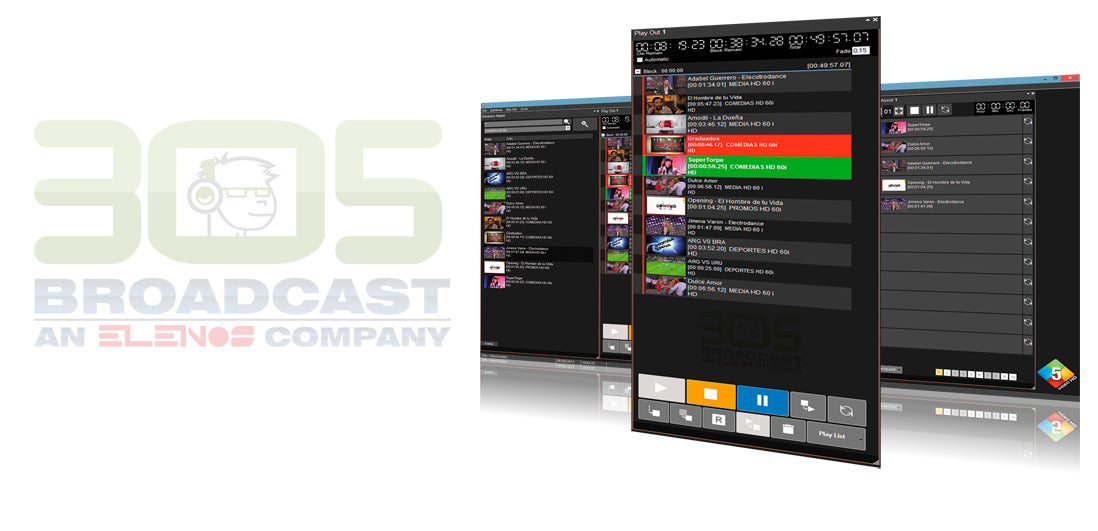

VIDEO SERVER Multiformat HD allows multiformat content broadcasting in the same play list. Search frame to frame. Defining multiple video clips on the same video. Audio levels adjustment. SQL Databases. Video Trim, pre view on screen. HTML Control with viewing reports, schedule, air control, etc.



Video and Graphics & Alpha by IP - connection via Gigabit Ethernet

Audio Input:

16 Channels Per Input, Embedded in SD and HD. Audio Output : 16 Channels, Embedded in SD and HD.

HD Format Support:

720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.


SD Format Support:

625/25 PAL ,525/29.97 NTSC and 525/23.98 NTSC


SMPTE specifications:

12M, 125M, 259M, 272M, 274M, 291M, 292M, 296M, 299M, 372M, 424M, 425M


SUPPORTS XDCAM 1080, 540 , DVCPro100 ,MPEG 2 (ISO/IEC 13818-2) (VBR, CBR) up to 80 Mbps, MPEG 2 HD , WMV HD, etc


Hardware Requirements: Computer with INTEL processor, 8 GB of RAM, 430W Power, HDX500 and 3 TBytes on RAID 0, PCI Express Video Card 1 GB DDR3, DVD, 4U Cabinets on RACK, Windows Seven Professional
