Video 5 OB-TRUCK 4x2

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

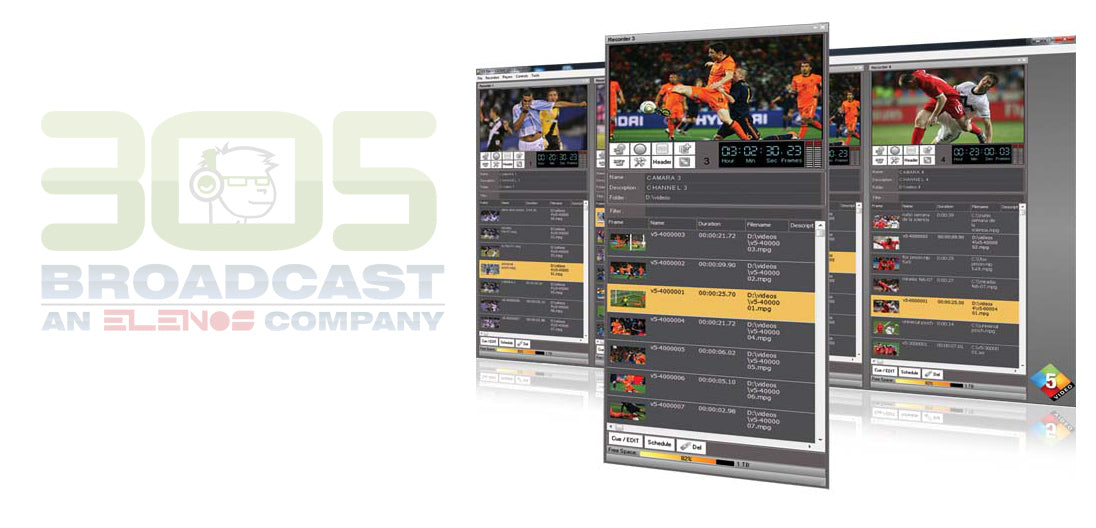

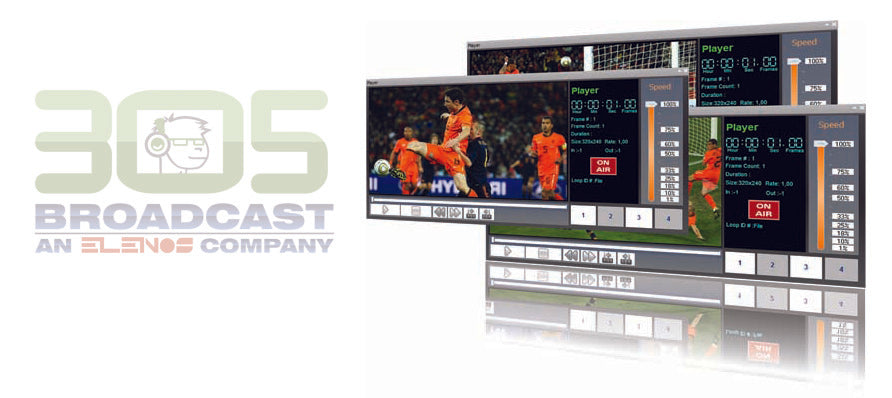

2 SD/HD recording channels 2 SD/HD playback channels simultaneous, recording and real-time compression of the two channels, Play Out Integration, Multiple compression formats selectable per channel , Back recording by Time Code, Video Trim, Defining Metadata for each video file in Header, a graphical display of the video box recorded for better identification, frame by frame search, Define multiple video clip on the same video, pre view on screen, Audio Level Adjustment, Recording with DATE and TIME and LOGO, Time SHIFTING, etc.


4 IN x 2 OUT without fade or

4 IN x 1 OUT with fade


Audio Input / Audio Output:

8 Channels per Input, Embedded in SD and HD.

Sync Input: Via One Of SDI Inputs


HD Formats supported: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i60 and 1080i59.94.


SD Formats supported: 625/25 PAL, NTSC and 525/23.98 525/29.97 NTSC .

SDI Compliance: SMPTE 259M and 292M


VIDEO Sampling:4:2:2

COLOR Presicion: 10 bit

COLOR Space: 4:2:2 YUY2


SUPPORTS MPEG 2 (ISO/IEC 13818-2) (VBR, CBR) up to 80 Mbps, MPEG2 I- FRAME 1080i, DVCPRO100.


INCLUDES: Computer with INTEL processor, 12 GB of RAM Total, HDX500 and 4 TBytes on RAID 0, 4U Cabinet on Rack, 450W Power Supply, PCI Express Video Card, DVD, Windows SEVEN
