VIDEO REC STUDIO/4 SD-HD

VIDEO 5 STUDIO HD offers a powerful tool for recording simultaneous video channels.

Excellent performance in live broadcasting.

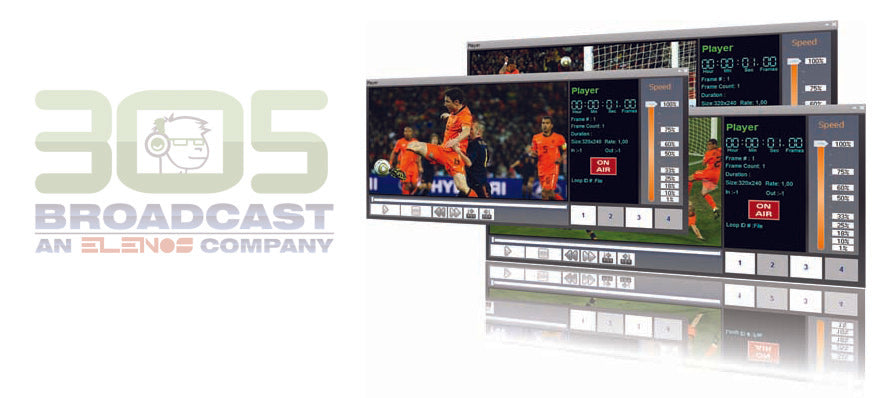

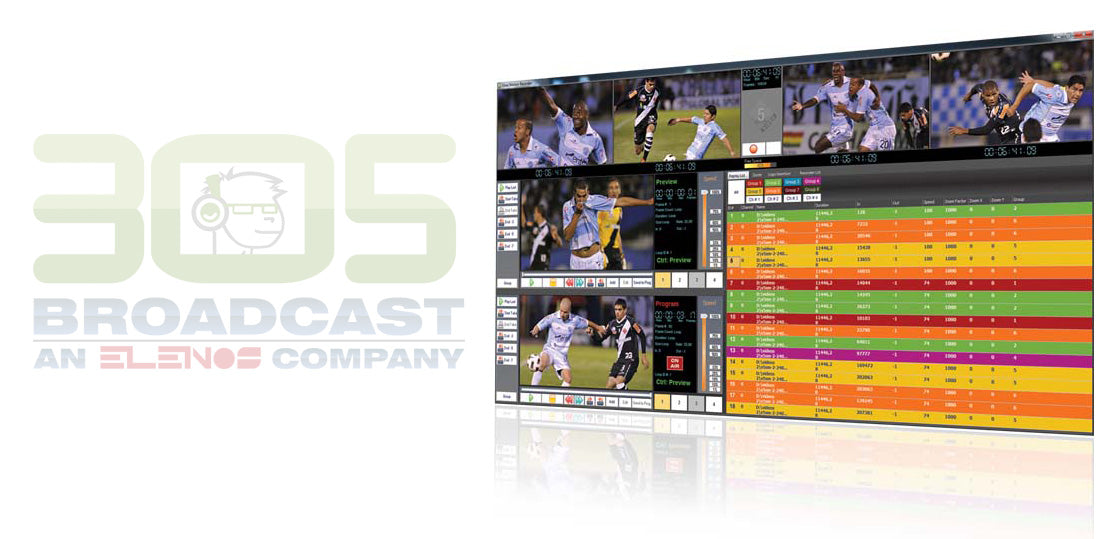

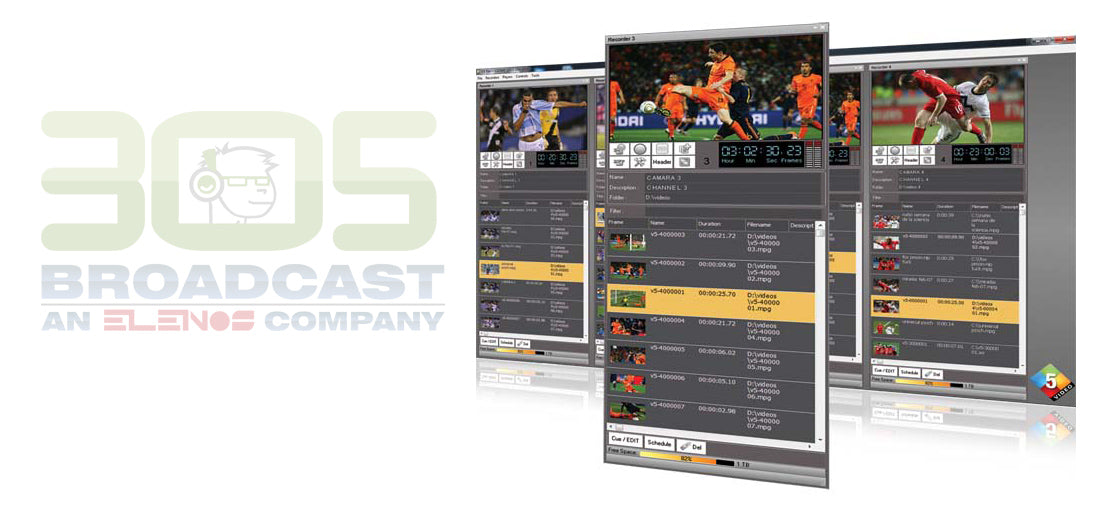

Recording System: allows multiple operations: Two channels of recording HD 1 HD playback channel simultaneous, recording and real-time compression of the two channels, Play Out Integration, Multiple compression formats selectable per channel , Back recording by Time Code, Video Trim, Videos Assigning to function key for speed playback, Defining Metadata for each video file in Header or database integration, a graphical display of the video box recorded for better identification, frame by frame search, Define multiple video clip on the same video, shoot sequence definition , pre view on screen, SLOW MOTION PLAY, Audio Level Adjustment, Recording with DATE and TIME and LOGO, defining segments recording schedules, etc.

Video Input:

• 2xSD/HD SDI

Video output:

• 1xSD/HD SDI

Video Input:

• 2xSD/HD SDI

Video output:

• 1xSD/HD SDI

Sync Input: SDI or TRI_LAVEL

HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.

SD Format Support: 625/25 PAL ,525/29.97 NTSC and 525/23.98 NTSC

SDI Compliance: SMPTE 259M and 292M

VIDEO Sampling: 4:2:2 COLOR

Precision: 10 Bit COLOR

Space: 4:2:2 YUY2

SUPPORTS MPEG 2 (ISO/IEC 13818-2) (VBR, CBR) up to 80 Mbps, MPEG 2 HD DVD, MPEG 2 HDV HD1, XDCAM 1080, 540, DVCPRO100, WMV HD, etc

INCLUDES: Computer with INTEL processor, Mother board SUPERMICRO, 12 Gbytes of RAM Total, 1 HDX500 and 8 TBytes on RAID, PCI Express Video Card, DVD, and Windows SEVEN.
