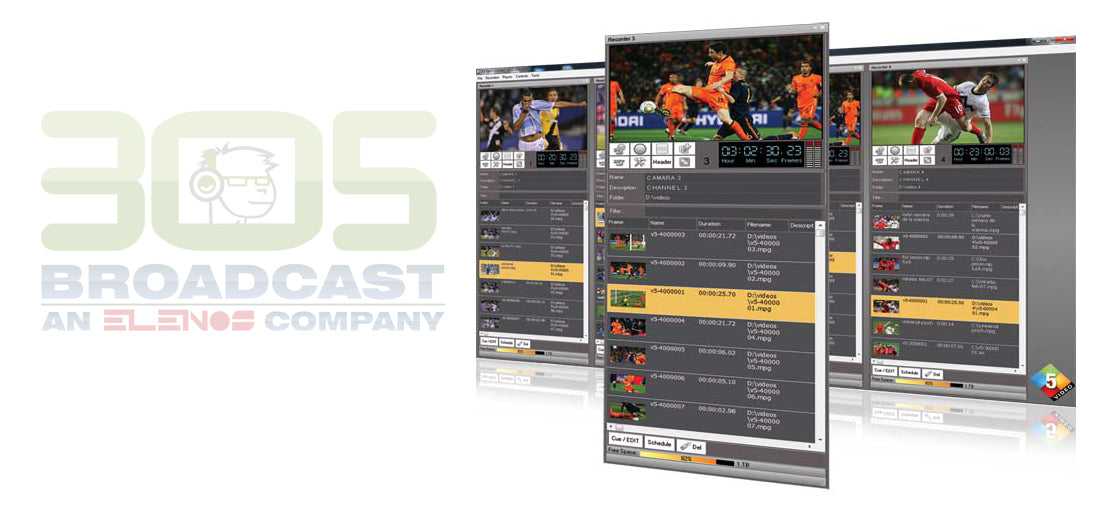

Recording System: allows multiple operations: Four channels of recording HD 1 HD playback channel simultaneous, recording and real-time compression of the two channels, Play Out Integration, Multiple compression formats selectable per channel , Back recording by Time Code, Video Trim, Videos Assigning to function key for speed playback, Defining Metadata for each video file in Header or database integration, a graphical display of the video box recorded for better identification, frame by frame search, Define multiple video clip on the same video, shoot sequence definition , pre view on screen, SLOW MOTION PLAY, Audio Level Adjustment, Recording with DATE and TIME and LOGO, defining segments recording schedules, etc.


Video Input: 4xSD/HD SDI

Video output: 1xSD/HD SDI


Audio Input: 8 Channels Per Input, Embedded in SD and HD.

Audio Output: 8 Channels Per Input, Embedded in SD and HD.


Sync Input: SDI or TRI_LAVEL


HD Format Support : 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60


SD Format Support: 625/25 PAL ,525/29.97 NTSC and 525/23.98 NTSC.


SDI Compliance: SMPTE 259M and 292M


VIDEO Sampling: 4:2:2 COLOR

Precision: 10 Bit COLOR

Space: 4:2:2 YUY2


SUPPORTS MPEG 2 (ISO/IEC 13818-2) (VBR, CBR) up to 80 Mbps, MPEG 2 HD DVD, MPEG 2 HDV HD1, XDCAM 1080, 540, DVCPRO100, WMV HD, etc


INCLUDES: Computer DUAL XEON, Mother board SUPERMICRO, 6G bytes of RAM , HDX500 bytes and 8 TBytes in RAID, PCI Express Video Card 1 G bytes, DVD, WINDOWS SEVEN
