Wheatstone L-Series and L-Series-EQ  -  On Air console



These sleek control surfaces are scaled just right for producing news and voiceovers. Like the LX-24, the L-8/L-12/L-16 have all the latest goodies plus are hot swappable down to the individual fader.

These cousins to the popular LX-24 are big in capability but scaled for news production, voiceover work and all those applications requiring a solid control surface that will deliver under deadline.

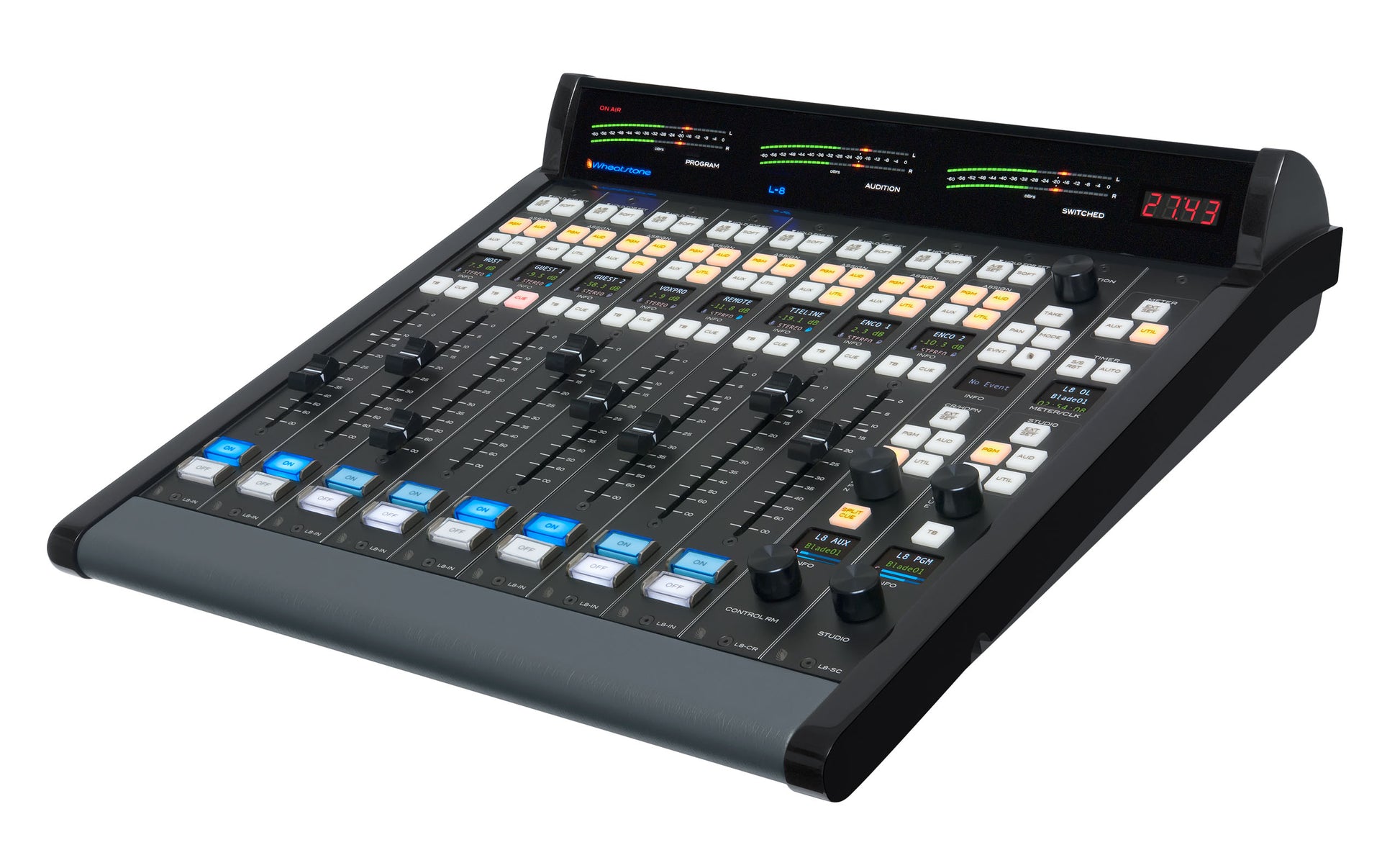

The L-8, L-12, and L-16 are based on all the same design principles as the LX-24: precision-built, low-profile, tabletop IP control surfaces with hot-swappable individual fader modules that offer assignable sources to any fader.

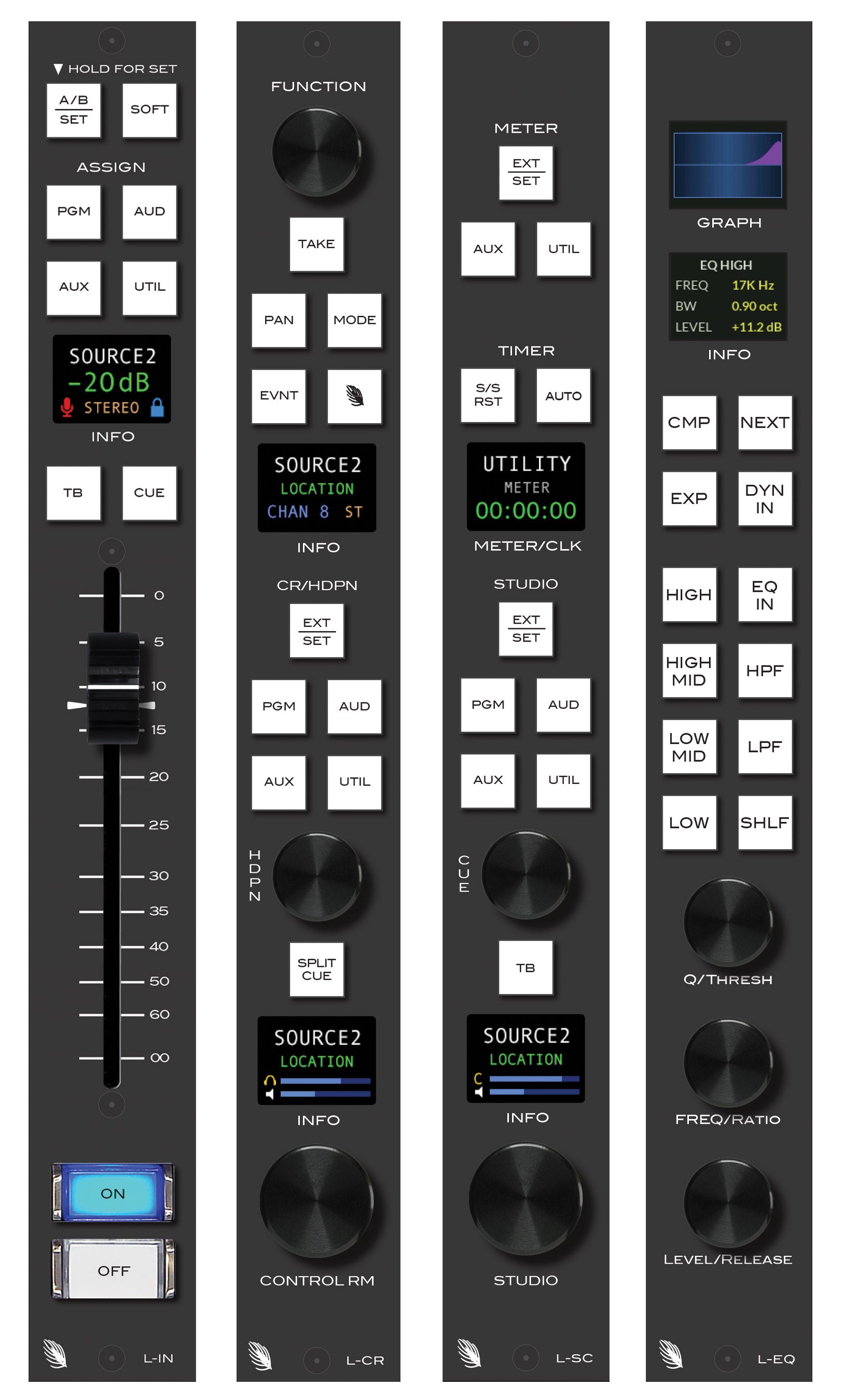

Each fader can access four stereo output busses, a stereo cue bus, and its own individual Bus-Minus. An OLED source name display, an A/B source selector, and one programmable soft button are also provided, and a SET button gives access to assignable controls in the master section. Snapshots of the L-8, L-12, or L-16 configuration can be saved and recalled at the touch of a button, making setup for different working sessions a snap.

The L-Series-EQ include EQ & Dynamics Processing on every fader channel.


Features

  • Low-profile, tabletop form factor allows clear sight lines and requires no furniture cutouts
  • Any source to any fader
  • Four stereo busses
  • A/B dual input switching
  • Bus Minus (N-1) on each input channel
  • Hot-swappable fader modules
  • Event preset recall
  • Built-in headphone amplifier and level control
  • Built-in Cue speaker on L-12 and L-16

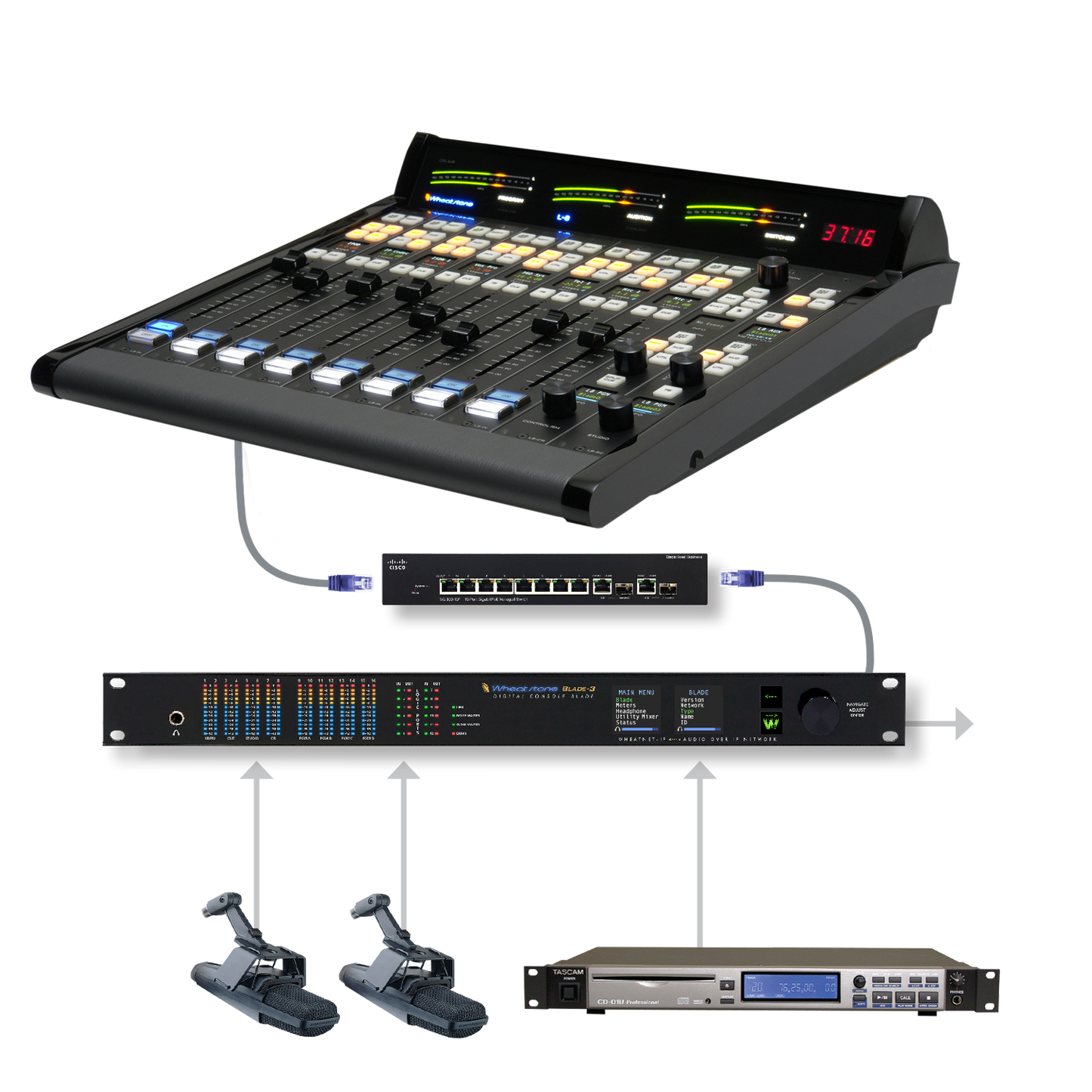

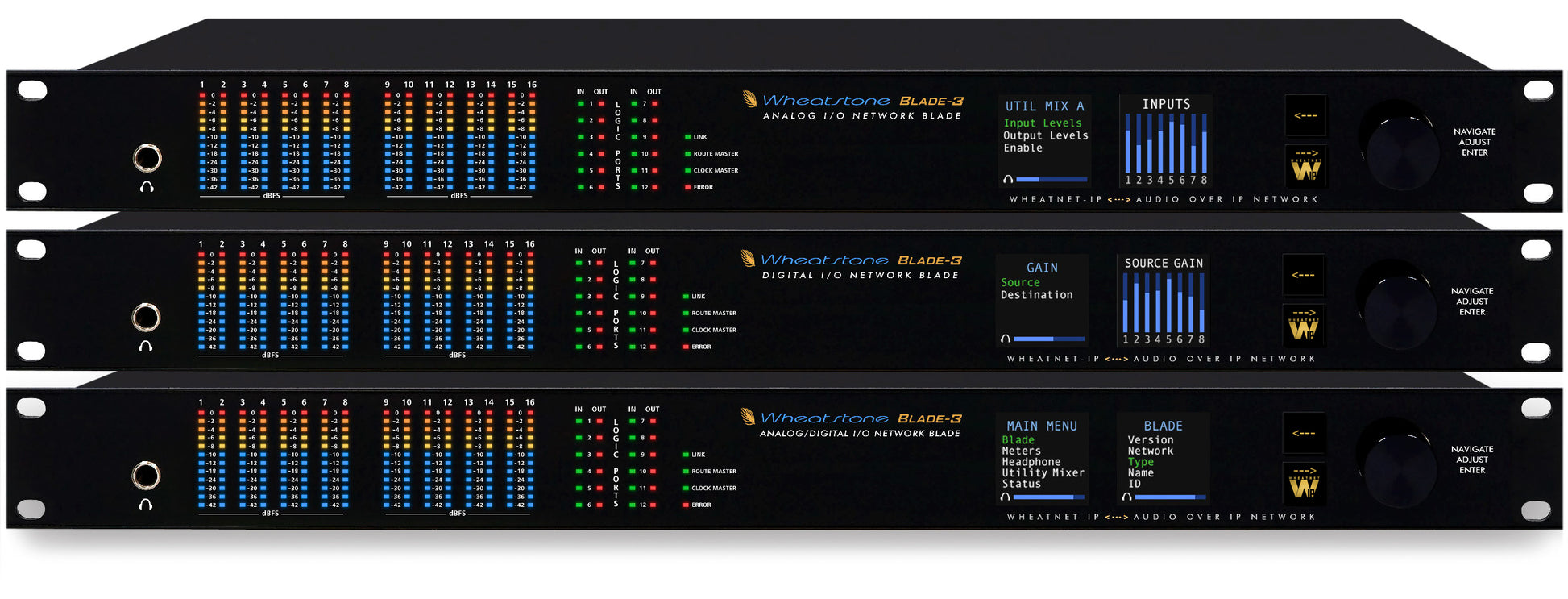

  • Includes IP88CBL Console Audio BLADE


PHYSICAL DIMENSIONS L-SERIES:

All front to back: 16-1/4” (41.275 cm)
All front height: 1-1/2” (3.81 cm)
All rear height: 4-1/4” (10.8 cm)
Width:
L-8: 16-5/8” (42.23 cm)

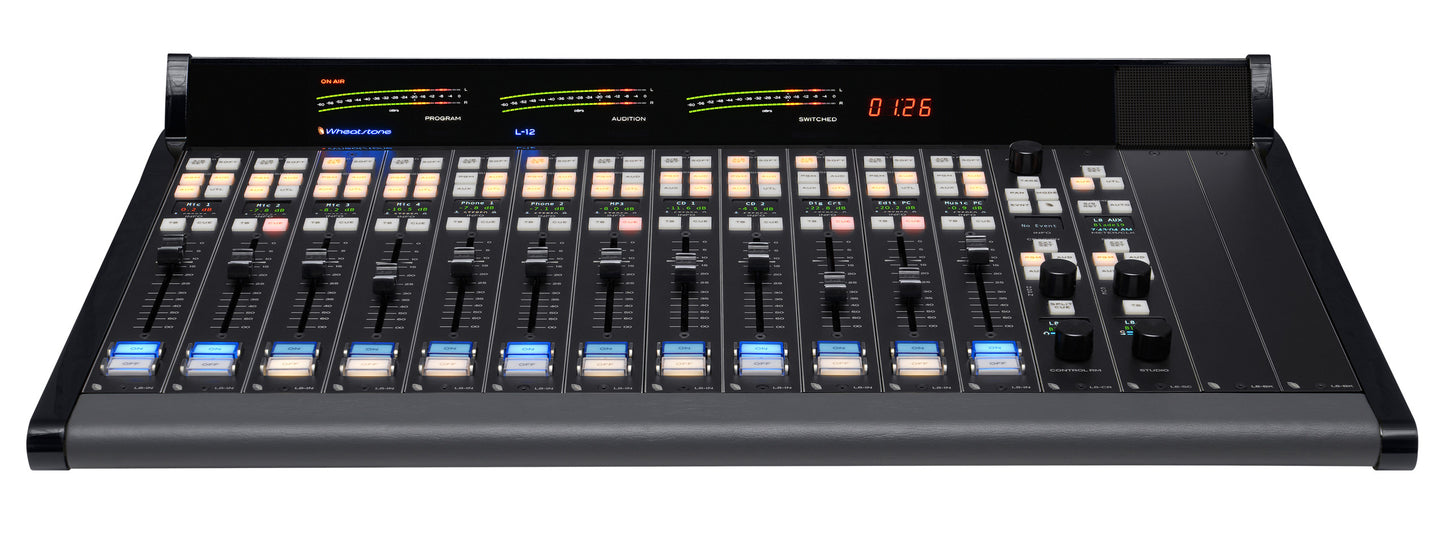

L-12: 25 5/8” (65.09 cm)

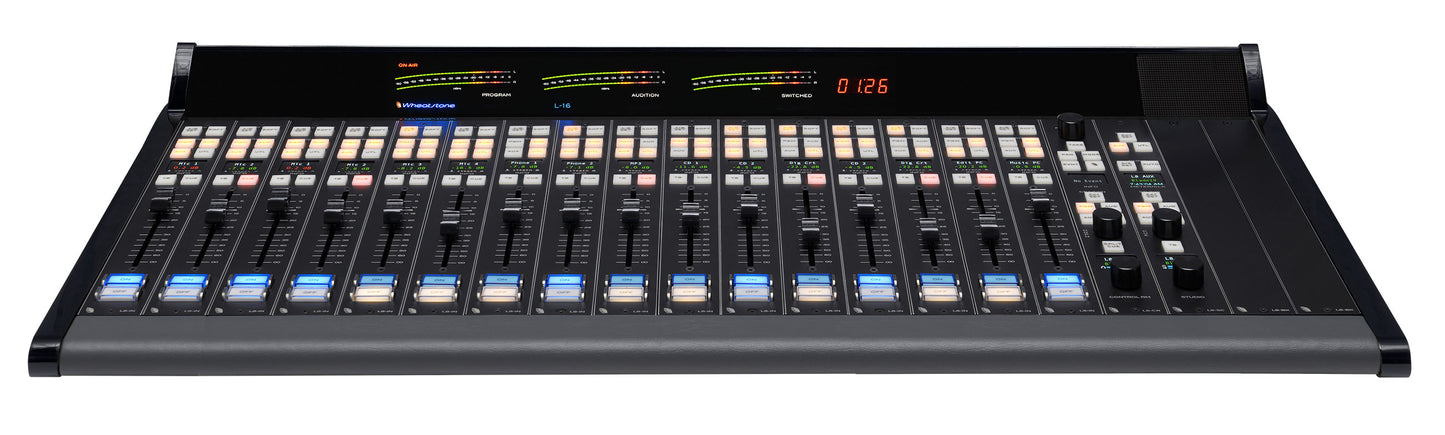

L-16: 31 5/8” (80.33 cm)
