Yellowtec YT2200 Intellimix 2 Desktop Mixer Version 2

Yellowtec YT2200Intellimix 2 Desktop Mixer Version 2



The Intellimix Pro Dektop Mixer is designed as a full-blown 8-channel mixer with advanced AoIP connectivity as standard, extended I/Os and settings. It is designed as a mixing device to master every imaginale and complex 8-channel mixing task. Thanks to remote control options, admin mode and an unlimited ampunt of user profiles, Intellimix Pro is the ideal desktop mixer for shared workplaces. As standard, it offers connectivity to run multichannel AES67, Livewire, RAVENNA, NMOS and ST2110.

The Intellimix Desktop Mixer stands for a whole new kind of mixing experience. It consists of two units. All the inputs and outputs are to be found on the Intellimix's 19" Base Unit while the Intellimix Control Unit is the place where the multitouch widescreen display and all the other operating elements are located. Thanks to the latest Intellimix Pro Octopus 8-channel firmware upgrade, Intellimix gets you control over another four inputs. All you need is one simple push on your Intellimix Control Unit's rotary control to switch between the sources 1-4 and 5-8.

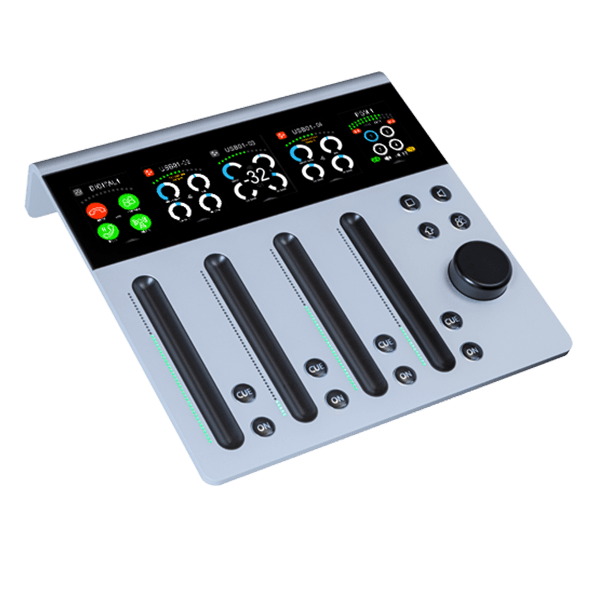

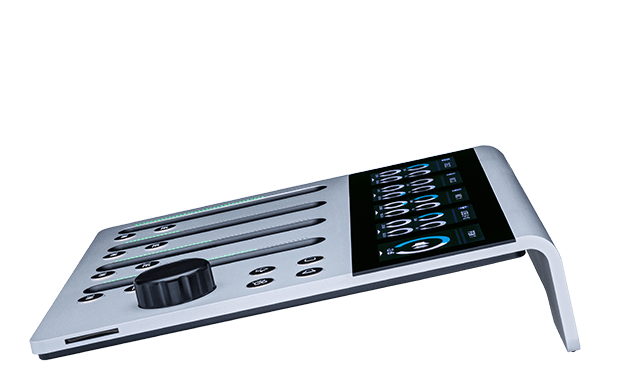

The basic elements of the Intellimix Control Unit are its four G-Touch© fader, the multitouch widescreen display and a rotary control. As a whole new fader technology, the G-Touch© fader combines all the existing fader types' benefits in a whole new way. Receive an enormous responsiveness and physical orientation when sliding your fingers trough the molded groove. Make use of the option to preset fader positions and enjoy different fader modes as well as various LED bargraph indication options.

The Intellimix Base Unit is where the audio-processing takes place. Headphone and microphone inputs are directly accessible on its front side. All the other in- and outputs are located on the Base Unit's rear side. In contrast to Intellimix Focus, Intellimix Pro comes with built-in X64 AoIP solution. As series, it offers you connectivity to AES67, Livewire, Dante, RAVENNA, NMOS and SMPTE ST2110.

Details

  • Red Dot Product Design Award Winner
  • Intuitive control over a wide feature set
  • 4 all-new G-Touch© faders with LED bargraphs
  • Choice of various fader modes
  • 4 uncluttered channel display sections belonging to one channel each
  • 1 master display section for overall settings and volume control
  • Sealed push buttons and a robust rotary control for tactile feedback
  • Intellimix Octopus Firmware gets you control over up to 8 input sources
  • Up to 8 simultaneous channels are displayed in 2 layers
  • Every Channel Display shows 4 parameters of your choice ("Fab Four")
  • Built-in X64 AoIP solution to connect via AES67, Livewire. Dante, RAVENNA, NMOS and SMPTE ST2110
  •  AoIP on board: Built-in DANTE 4x4 technology
  • Integrated 16-channel version of Yellowtec's PUC2 USB Audio Interface
  • APC-Interfaces allow for multiple extensions like SDI Embedder/De-Embedder
  • 3 of the APC-Ports can be used for optional Intellimix Pro Extensions
  • SD-Card Slot
  • Dynamics: fully adjustable
  • EQ: fully parametric
  • User Administration: Admin Mode available
  • Unlimited amount of user profiles
  • Compatible with Yellowtec's b-line Phone System
  • Connect a b-line unit and control calls directly via the Intellimix Control Unit

 Specs

CONTROL UNIT:

  • Dimensions: 24,5cm x 24,5cm
  • Mic/Line Inputs: 2 - balanced, with selectable sensitivity -77dBu...?
  • Display: Light hi-res color TFT transreflective widescreen with 250Cd/m2
  • Displaysensor: Gesture ready 5-finder touch sensor
  • Faders: 4x G-Touch® 120mm faders with multifunctional position
  • Channels: 8x (Intellimix Octopus), displayed in 2 layers
  • Channel Display Control: 4 parameter of your choice are displayed ("Fab Four")
  • Keys: 12x illuminated sealed hard keys
  • Chassis: Solid aluminum desktop cabinet with SD-Card reader
